Logan Dilts 18 Year Old Built His Dream Truck 1976 Ford F-250.jpg

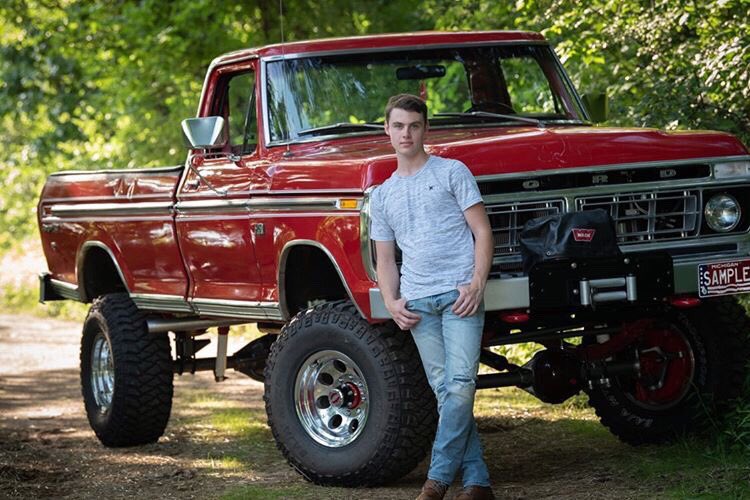

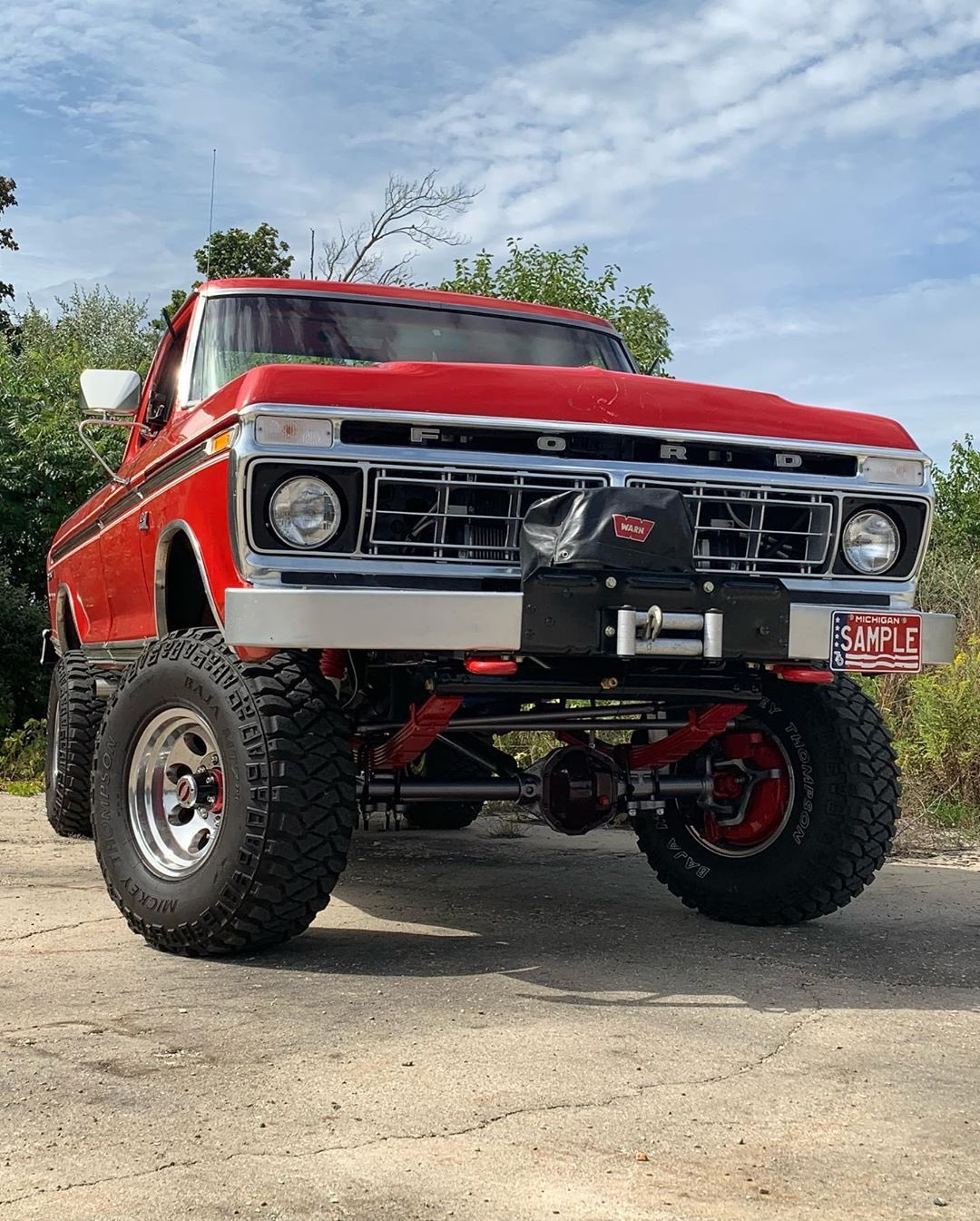

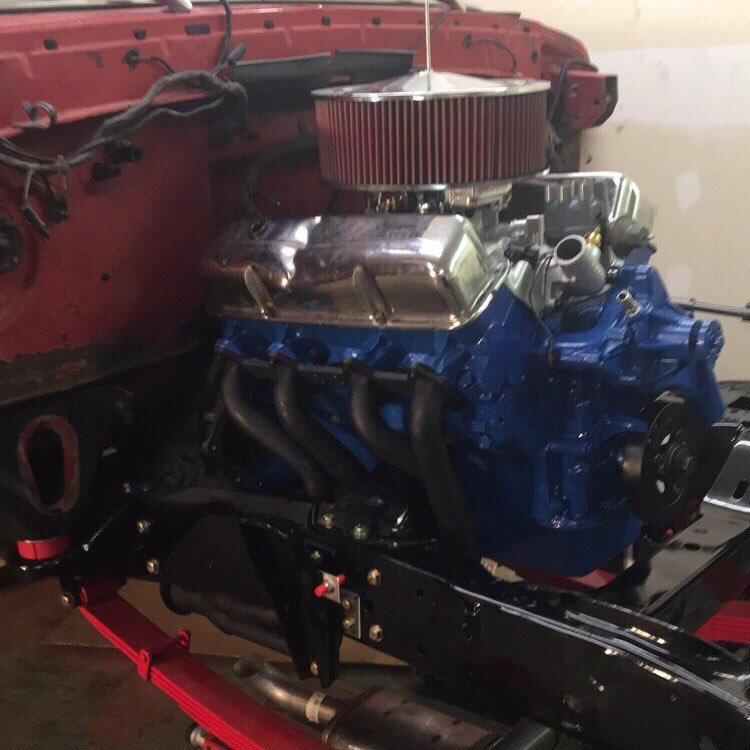

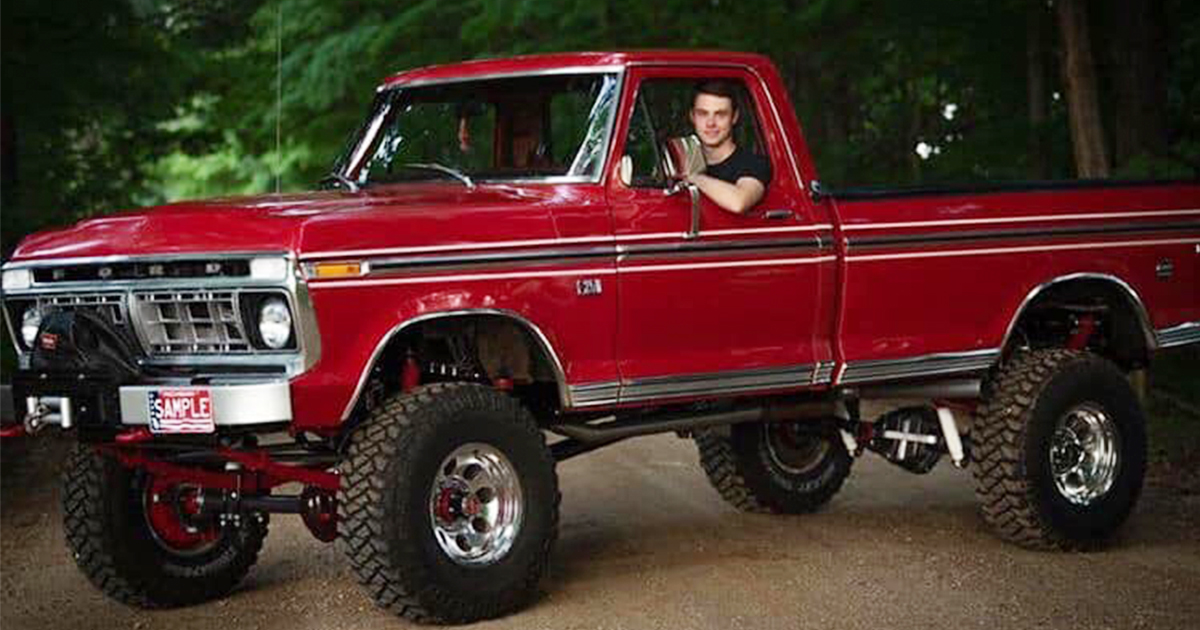

Logan Dilts says: My truck is a 1976 Ford F-250 “Highboy” with a 416 Ci ford FE engine, I started building the truck when I was 16. Following the engine is a C6 auto trans and a divorced np203 transfer case converted to part time.Owner https://www.instagram.com/logandilts43
18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 5.jpg


18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 2.jpg

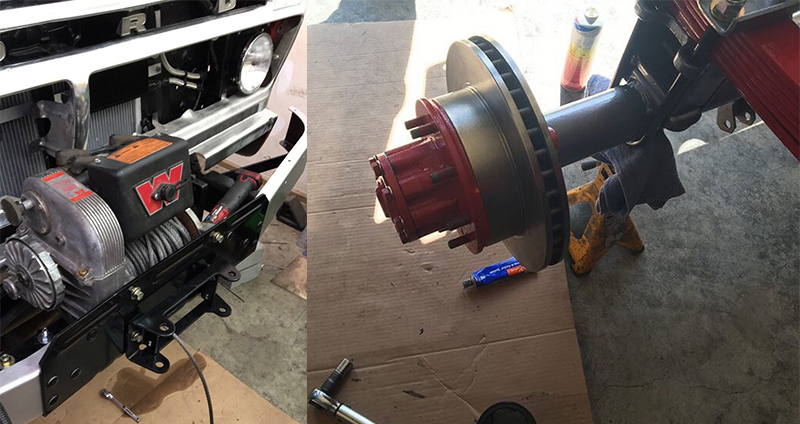

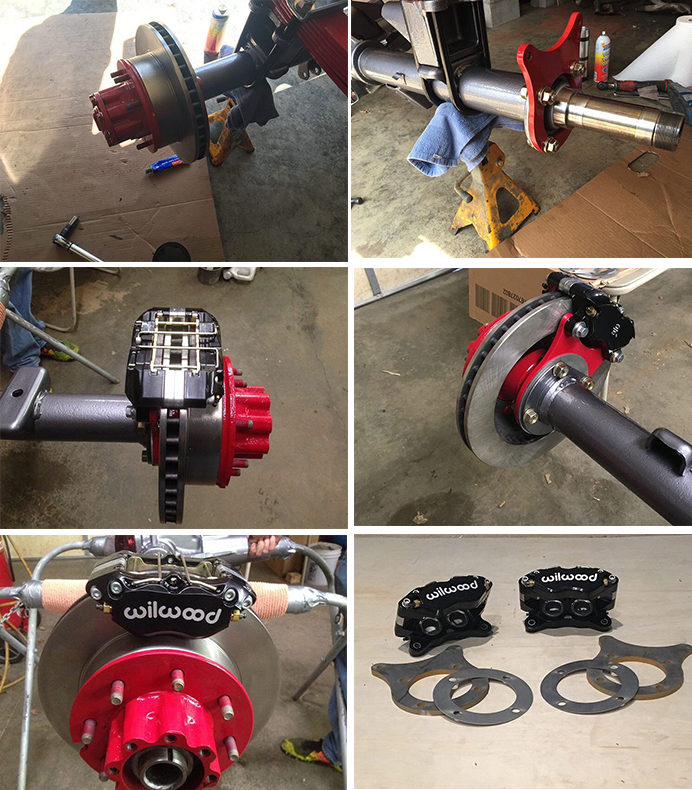

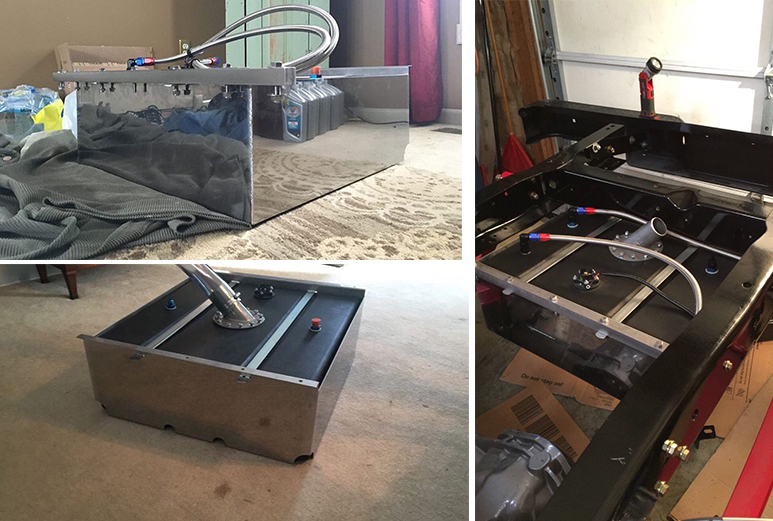

The truck has a custom Wilwood disk brake conversion designed by me for a Dana 60 rear It also has a custom stainless steal fuel cell tub as from factory there was no fuel tank under the box.

18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 5.jpg


18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 6.jpg


18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 7.jpg

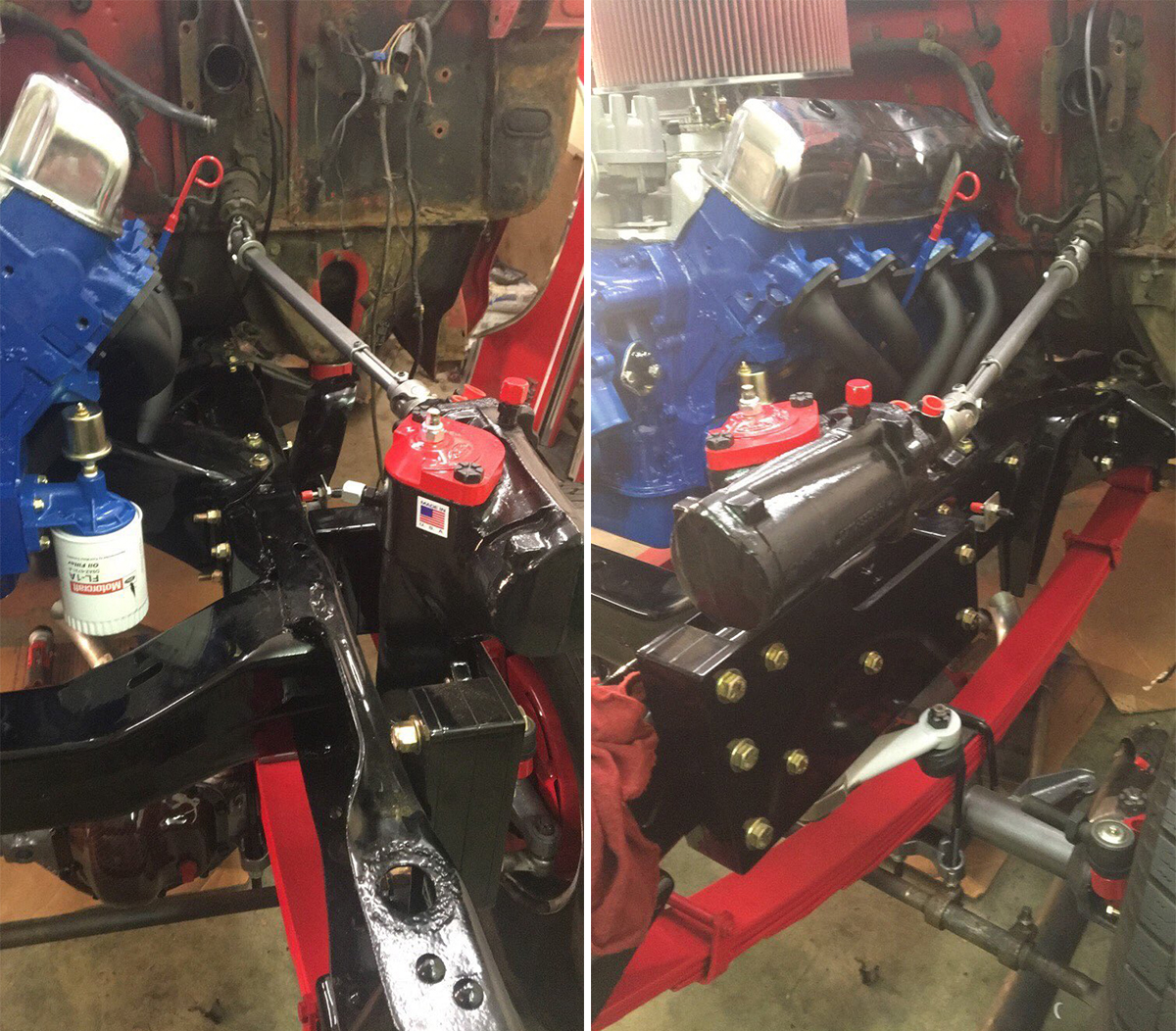

These trucks originally had power assist. I also designed a full power steering system so it is no longer assist. It has a high steer crossover setup so there is practically 0 bump steer. 16x10 Mickey Thompson Classic III rims with 35x12 Mickey Thompson Baja MTZ P3 tires and a 4in Skyjacker lift kit.
18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 8.jpg

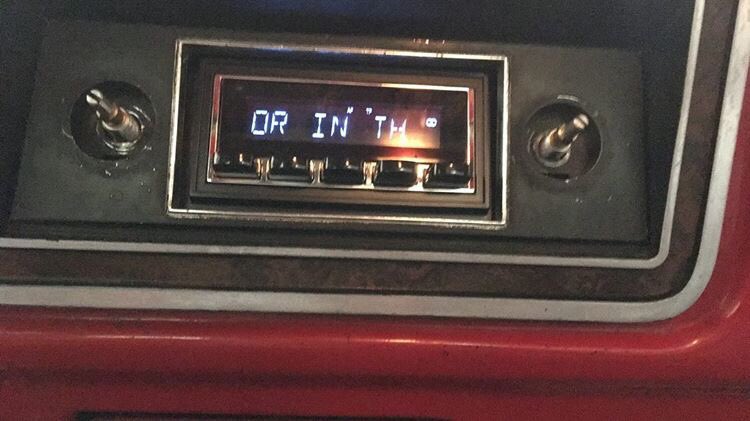

There is a Retrosound Long Beach radio in the cab that feeds a 5 channel Pioneer amplifier. The amplifier feeds two pioneer 6x9, a 12in shallow pioneer sub,and two alpine door speakers.
18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 3.jpg


Next to the custom speaker box I have an ARB twin compressor that will eventually feed ARB lockers front and rear.



18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 11.jpg


The truck currently has a Dana 44 front but I am in the process of putting in a High pinion Dana 60 from a 78 F-250 snow fighter.
18 Year Old Built His Dream Truck 1976 Ford F-250 www.FordDaily.net 2 10.jpg



Join Now - Ford News - Ford Trucks Forum





Attachments

  • 0-02-0a-04d7e47677fd9705b73c7e2ddfac2d75e58b1ee4aafe79dcbcd9d01a3ff76b5f_bbd26e99.mp4
    3.1 MB · Views: 179
Last edited:

geoff cdn

New member
Registered
Local time
Today, 05:59
Joined
Mar 2, 2020
Reaction score
0
Location
Edmonton Canada
View attachment 3531

Logan Dilts says: My truck is a 1976 Ford F-250 “Highboy” with a 416 Ci ford FE engine, I started building the truck when I was 16. Following the engine is a C6 auto trans and a divorced np203 transfer case converted to part time.
View attachment 3541

View attachment 3532

The truck has a custom Wilwood disk brake conversion designed by me for a Dana 60 rear It also has a custom stainless steal fuel cell tub as from factory there was no fuel tank under the box.

View attachment 3534

View attachment 3535

View attachment 3536
These trucks originally had power assist. I also designed a full power steering system so it is no longer assist. It has a high steer crossover setup so there is practically 0 bump steer. 16x10 Mickey Thompson Classic III rims with 35x12 Mickey Thompson Baja MTZ P3 tires and a 4in Skyjacker lift kit.
View attachment 3537

There is a Retrosound Long Beach radio in the cab that feeds a 5 channel Pioneer amplifier. The amplifier feeds two pioneer 6x9, a 12in shallow pioneer sub,and two alpine door speakers.
View attachment 3533

Next to the custom speaker box I have an ARB twin compressor that will eventually feed ARB lockers front and rear.



View attachment 3540

The truck currently has a Dana 44 front but I am in the process of putting in a High pinion Dana 60 from a 78 F-250 snow fighter.
View attachment 3539


Join Now - Ford News - Ford Trucks Forum



View attachment 3597

H

Hunter P

Guest
Guest
what cond was it in when you started
